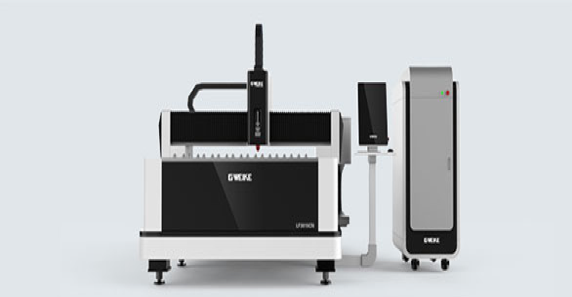

LF3015LN HOT SALE FIBER LASER CUTTING MACHINE

LF3015LN HOT SALE FIBER LASER CUTTING MACHINE

Product Description

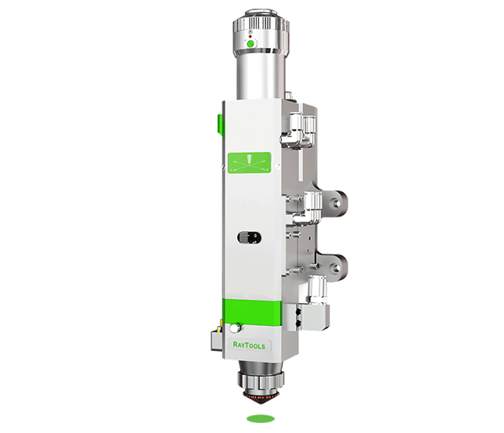

Autofocus Laser Cutting Head




Without Manual Focusing

The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.


Bigger Adjustment Range

Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.


Long Service Life

Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

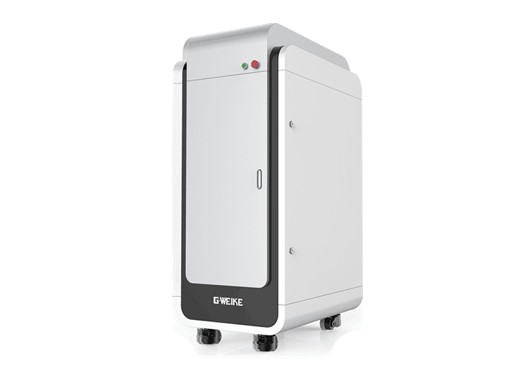

Independent Control Cabinet




Dust-proof

All electrical components and laser sources are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components


Automatic Thermostat

The control cabinet is equipped with air conditioner for automatic constant temperature. This can prevent excessive temperature damage to components in summer.

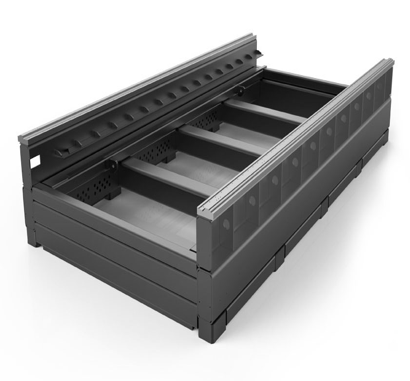

The Segmented Rectangular Tube Welded Bed




Stress Relief and Heat Treatment

The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.
High strength, stability, tensile strength, ensuring 20 years of use without distortion; Thickness of rectangular pipe wall is 10mm and weights 4500 kg.


Machine Advantage



Stainless Steel Protection Design


The operating area adopts a 304 stainless steel design to prevent high-temperature cutting sparks from damaging the machine's surface.

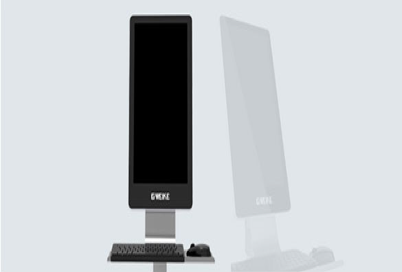

IPAD Designing Screen


Using the high-definition toughened glass screen, more exquisite and delicate, the operation is smoother.

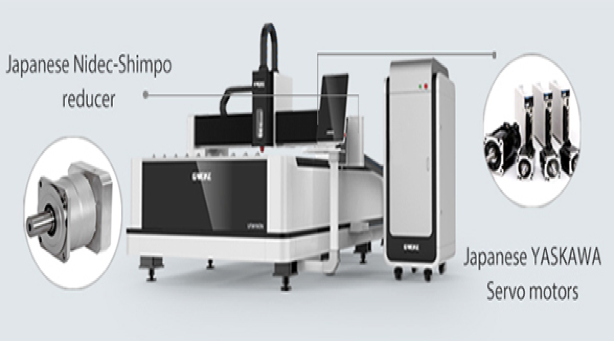

Transmission And Precision.


Equipped with Japan YASKAWA servo motor, Hiwin rail guide and France Motorreducer. The positioning accuracy of the machine can be 0.02mm.


Industry Applications

LF3015LN fiber laser cutting machine as one classic model, widely used in many common areas of our life,
such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people's daily life.
Used for cutting a variety of metal plates, mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum,
various alloy plate, rare metal and other metal materials.
